Quick Details

  • Type: Other
  • Condition: New
  • Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
  • Packaging Type: Case
  • Packaging Material: Wood
  • Automatic Grade: Automatic
  • Driven Type: Pneumatic
  • Voltage: 380v50hz
  • Power: 1.5kw
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: xinchuang
  • Model Number: xc-250
  • Weight: 2000KG
  • Dimension(L*W*H): 3500*1500*2000mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Commodity name:: Blister Auto Packing Machine for chocolate/jam /cheese
  • Color:: light gun color
  • Material:: SS304 stainless steel
  • Packing speed: 5000-6000 cups/hr
  • Film width: 250mm
  • Filling content: 5-50ml
  • Heat up power: 6 kw
  • Air pressure: 0.5Mpa-0.7Mpa
  • Max air comsuption: 0.5m3/m
  • Timing mode: Servo motor driving

Packaging & Delivery

Packaging Details Cover with film ,
Pack into wooden case
Customer's request is available
Delivery Time 1mont

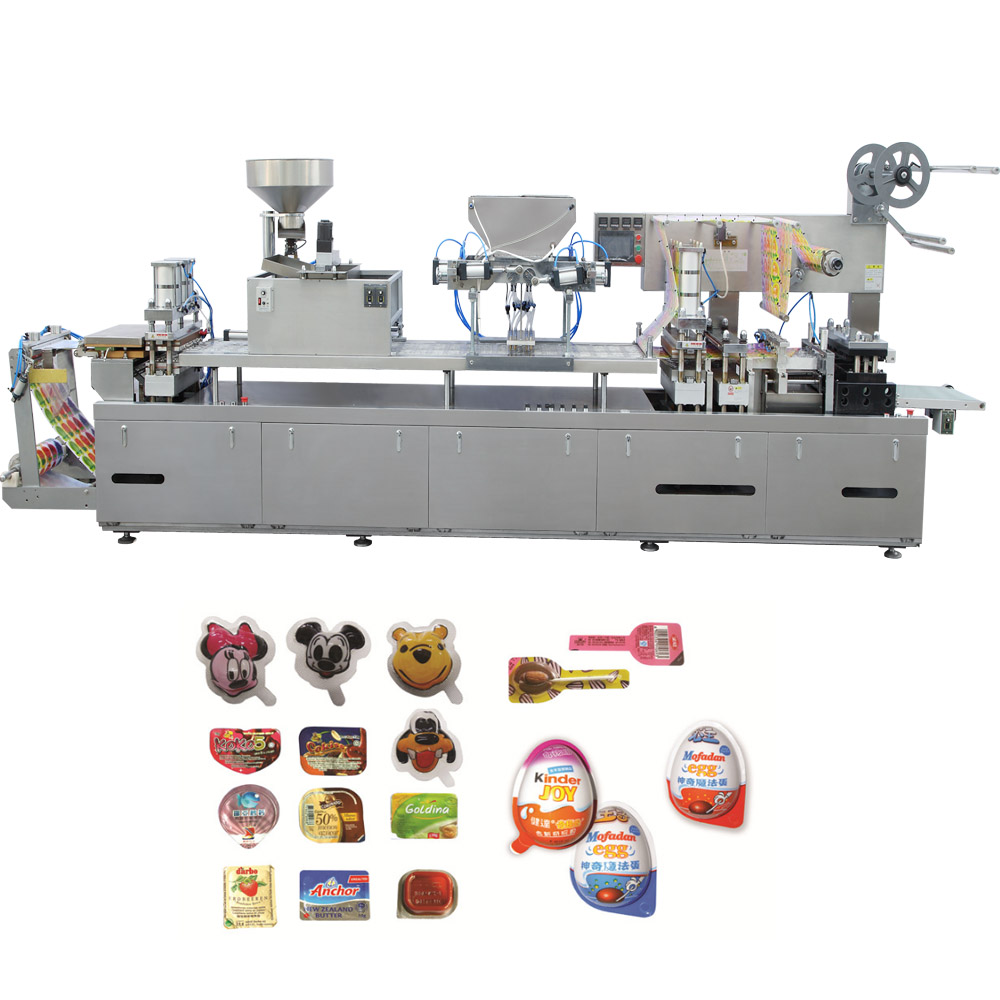

XC- series Blister Auto Packing Machine for chocolate/jam /cheese ( FFFS MACHINE )











Feature :
1. suit to chocolate , jam, honey, butter, cooked cheeze
2. packing way by blister PVC / PET
3. automatic working process, from forming container , filling to sealing cutting, it's best chocie for mass production
4. can change the different mold for different shape
5. saving space
6. lower invest cost, fast benefits.

Specification  Technical information
Cutting Frequency (Times/min)6-20
Capacity (10 thousand pcs/h)3.5-23
Max. Forming Area and Depth(mm)240×150×26
Stroke (mm)40-160 (customized)
Standard Plate(mm)80×57 (customized)
Air Pressure (Mpa)0.4-0.6
Air supply≥0.3 m³/min
Total Power380V/220V 50Hz 6.2kw
Main Motor Power (kw)1.5
PVC Hard Pieces(mm)0.150.5×250
PTP Aluminum Foil(mm)0.02-0.035×250
Dialysis Paper(mm)50-100g×250
Mould Coolingtap water or recycling water
Overall Dimensions(mm)4000×720×1550(L×W×H)
Weight (kg)2000



can be special to make according to your needs ...
